Compressor Technical Data

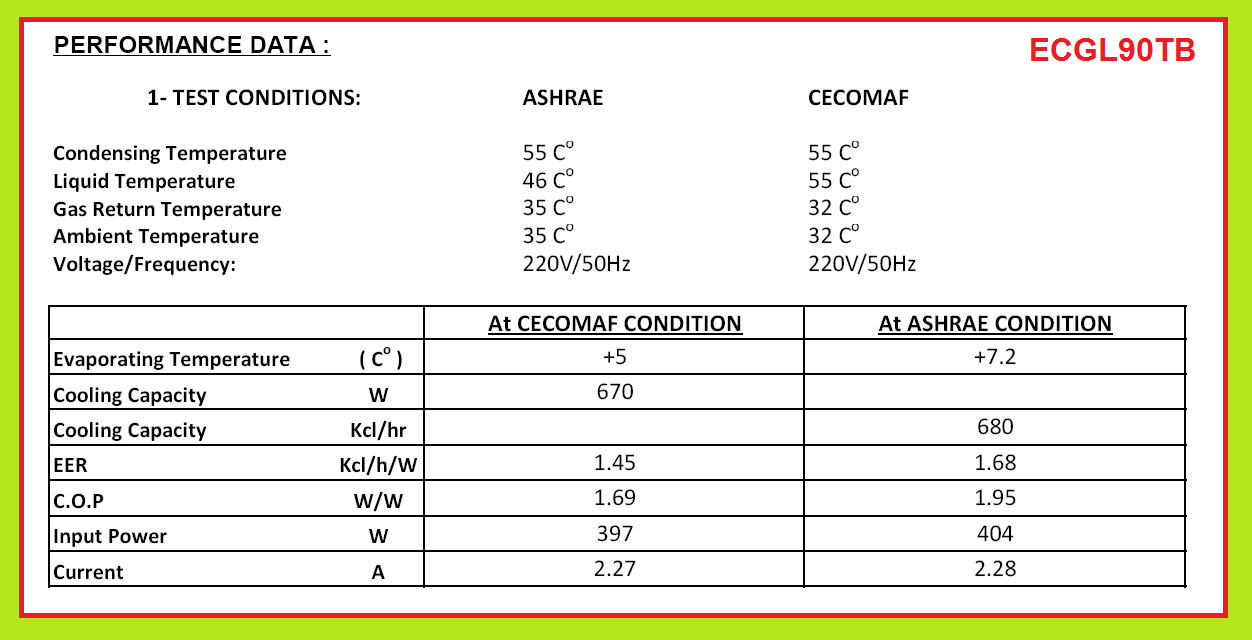

Model: ECGL90TB       Code: ECGL20109001

General Data

Refrigerant: R134a
Application: MHBP
Evaporating Temperature Range: -25°C to +10°C
Voltage/Frequency: 220/240V/50 HZ
Compressor Cooling: FAN
Expansion Device: Capillary Tube
Packaging Quantity: Multi 21 pcs
Approvals: CE-VDE
Max. Ambient Temperature: 43°C
Max. Allowed Pressure: 20 Kg/cm2
Max. Peak Discharge Temperature: 135°C
Max. Peak Condensing Temperature : 70°C

Mechanical Data

Oil Charge: 300 cm3
Oil Type Configuration: ester
Oil Type Viscosity: 19 cSt
Weight: 16.3 kg

Electrical Data

Motor Type: CSIR
Voltage working range at 50 Hz: 187-264V
Maximum Motor Temperature: 130°C
Locked Rotor Current: 12.0 A
Start Winding Resistance: 28.54 Ω at 25°C
Run Winding Resistance: 7.54 Ω at 25°C
Phase: 1 ph

External Characteristics

Internal Diameter mm / inch
Suction Connector 6.5
Discharge Connector 5/16
Process Connector 6.5
Material Copper

Electrical Components

Starting Device: RELAY MTRP43
Motor Protection: T0057/xx

Condenser Data

Condenser Type: CU - AL
Condenser Model: 9 T 4 R
Fan Motor Output Power: 10 W
Fan Blade Diameter: 200 mm/28°
Owl Image

Assembly instructions for Terminal board

Download

External View

Download
